Industrial Gigabit Ethernet Managed L2+ Switch - PoE+, Extreme Temperature - INDRy

PoE+ for convenience

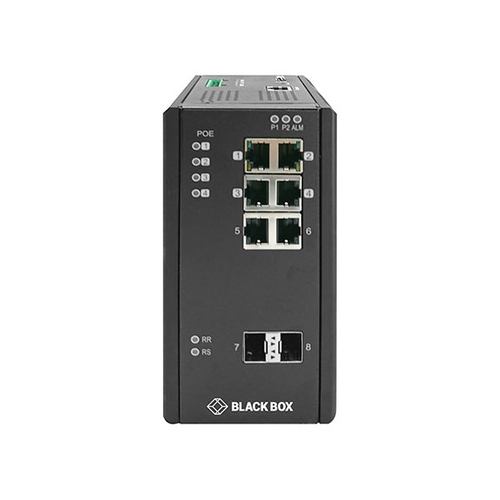

LIE1082A has (4) 10/10/1000-Mbps RJ-45 PoE/PoE+ copper ports, (2) 10/100/1000-Mbps copper ports and (2) 100/1000 Ethernet SFP slots for network flexibility and scalability. You can extend your network over multimode or single-0mode fiber at distances up to 80 km, depending on the SFP you choose.

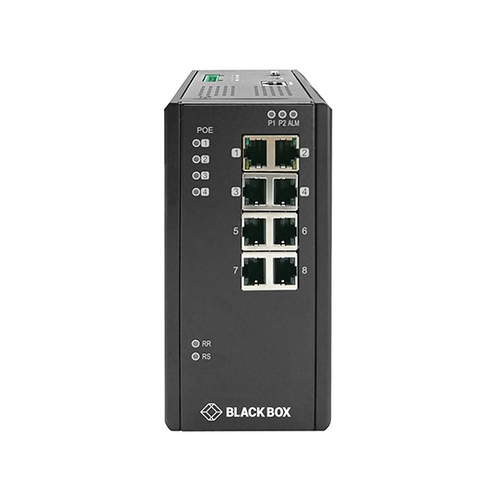

LIE1080A has eight 10/10/1000-Mbps PoE/PoE+ copper ports. These ports can power distant access points, security cameras, building access devices and industrial equipment in harsh environments where it's impractical to run electrical wires. The switch features full wire-speed forwarding rates, auto-negotiates for network speeds and Auto-MDI/MDI-X, eliminating the need for crossover cables.

Extreme applications
Encased in an IP30-rated metal case, this switch withstands extreme temperatures from -40°C to +75°C (-40° F to +167° F). Use it for:

• Security and surveillance, particularly to backhaul IP security camera data.
• Military applications, especially in ships and other vehicles.
• Factory automation for controlling machinery, PLCs, motor drives, sensors, counters, inspection cameras, and packaging equipment.
• Oil and gas fields or remote equipment monitoring and control.
• Building automation for controlling HVAC and lighting systems.

Maximize uptime
Advanced management features help minimize network downtime by enabling you to remotely diagnose and manage network problems. You'll also eliminate the need to send IT technicians on site—thus lowering costs.
The switch is fully manageable through SNMP, a Web browser, Telnet. Control the bandwidth on each port individually and set up Quality of Service (QoS) priority queuing for critical applications.
The switch supports port-based VLAN and IEEE 802.1Q VLAN tagging, MAC-based trunking, IP-multicast IGMP snooping, rapid spanning tree for redundancy. Plus, it has 802.1x port-based authentication for security.
Advanced management features help minimize network downtime by enabling you to remotely diagnose and manage network problems. You'll also eliminate the need to send IT technicians on site—thus lowering costs.

Fast failovers
For redundancy, the switch has two DC power inputs. If one power source fails, the switch automatically falls over to the second power source. It offers a 20 millisecond or less failover. In addition, an alarm will alert you in case of a power failure. The switch also gives you maximum network flexibility: Spanning Tree Protocol (STP/RSTP), Link Aggregation Control Protocol, and a ring protocol.

Installation options
The switch features redundant power inputs and includes DIN-rail and panel-mount kits. The power supplies (MDR-40-12, MDR-40-24, MDR-40-48, and SDR-240-48) are sold separately and will determine the amount of watts available for PoE operation.

Standards
CE; RoHS/WEEE; EN61000-6-2, EN61000-6-4;
Humidity
5 to 95% non-condensing
Operating Temperature
-40 to +85° C (-40 to +167°F )
Storage Temperature
-40 to +85° C (-40 to +167°F )
Buffer Memory
512 Kbytes
Connectors (8) RJ-45
Dimensions
15.4 x 10.9 x 6.0 cm (6"H x 4.3"W x 2.3"D)
Enclosure
IP30
Failover
Link loss recovery < 20ms; Single and multiple rings supported
Humidity
5 to 95% non-condensing
Indicators
LEDs: Power, Ethernet port link and speed
Ingress Protection
IP30
Jumbo Frames
9K
Link Aggregation
Static trunk or Dynamic via LACP (Link Aggregation Control Protocol)
Link Layer Discovery Protocol (LLDP)
IEEE 802.1ab
MAC Addresses
8K
Management
CLI, WEB-based Management; SNMP v1, v2c, v3; Telnet (5 sessions); HTTPs, SSH; Radius Client for Management; TFTP/FTP for Configuration Import/Export; TFTP/FTP for Firmware Upgrade; Syslog; RFC 1757 RMON 1,2,3,9; RFC 2674 Q-Bridge MIB; RFC-1213 MIB-II; RFC-1493 Bridge MIB; RFC 2233 IF MIB; DHCP; NTP/SNTP; PoE Management
Management Security
HTTPs; SSH; Radius client
MIBs
RFC 1757 RMON 1,2,3,9; RFC 2674 Q-Bridge MIB; RFC-1213 MIB-II; RFC-1493 Bridge MIB; RFC 2233 IF MIB
Mounting Type
DIN rail or wall mount
Multicast Protocols
IGMP v1, v2 with up to 255 multicast groups; IGMP snooping and querying; Immediate leave and leave proxy; Throttling and filtering
Network Redundancy
Fast failover protection rings: Link loss recovery <20ms; Single & Multiple rings supported; Spanning Tree Protocol: IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP; Port Trunk with LACP: Static trunk or Dynamic via LACP (Link Aggregation Control Protocol)
PoE
IEEE 802.3af PoE; IEEE 802.3at PoE+
PoE Management
Scheduling; power control; PoE PD power consumption
PoE Output
30 watts power per port to remote PD devices (dependent on power supply used)
Port Security
IP and MAC-based access control; IEEE 802.1X authentication Network Access Control
Power
Redundant input terminals, reverse power protection, 12 –58 VDC, 54–58 VDC for PoE+, 48–58 VDC for PoE; Maximum power: without PoE: 14 Watts, with PoE: 265 Watts
QoS
8 queues IEEE 802.1p QoS; SPQ, WRR scheduling schemes; port-based shaping 8 queues IEEE 802.1p QoS; SPQ, WRR scheduling schemes; port-based shaping traffic
Security
IP and MAC-based access control; IEEE 802.1X authentication Network Access Control; Multicast/Broadcast/Flooding Storm Control
Spanning Tree Protocol
IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP
VLAN
IEEE 802.1Q tag-based; IEEE 802.1ad Double Tagging; IGMP v1, v2; IGMP snooping and querying; Immediate leave and leave proxy; Throttling and filtering; IEEE 802.1ab Link Layer Discovery Protocol (LLDP)
PoE
PoE; PoE+
Weight
1 kg (2.3 lb.)
IGMP Multicast Groups
1 kg (2.3 lb.)

TAA compliant — YES

LIE1080A
(1) Industrial Managed Gigabit POE Ethernet Switch
(2) Wallmount plates
(1) DIN rail clip
(1) DC power terminal block
(8) RJ-45 port dust covers
Quick start guide

LIE1082A
(1) Industrial Managed Gigabit POE Ethernet Switch
(2) Wallmount plates
(1) DIN rail clip
(1) DC power terminal block
(6) RJ-45 port dust covers
(2) SFP port dust covers
Quick start guide
