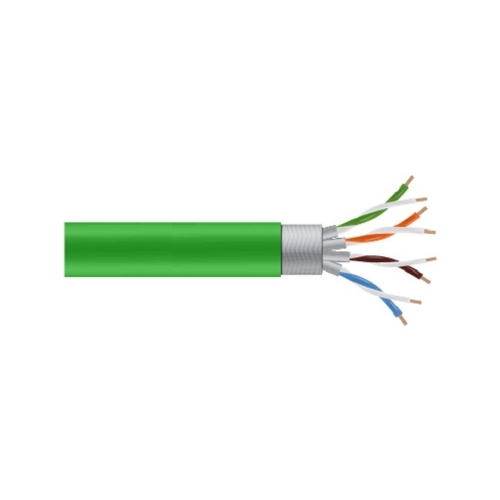

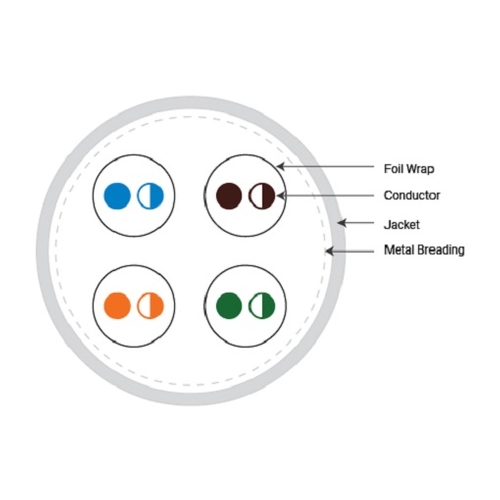

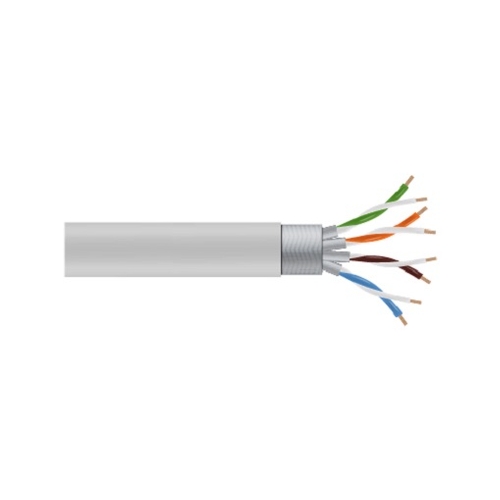

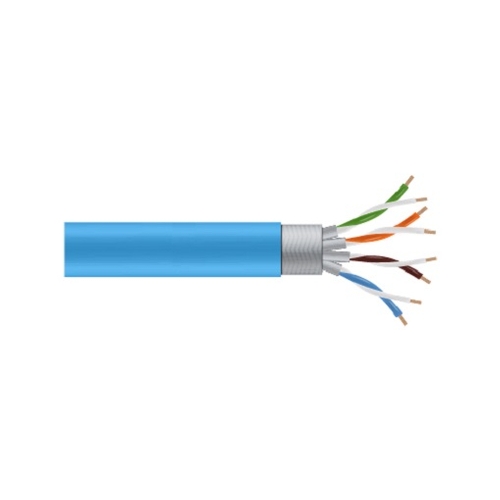

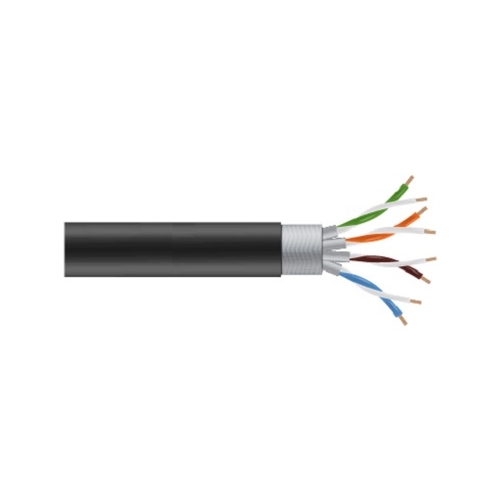

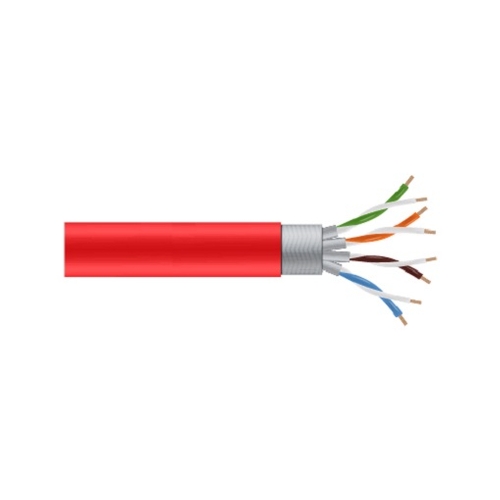

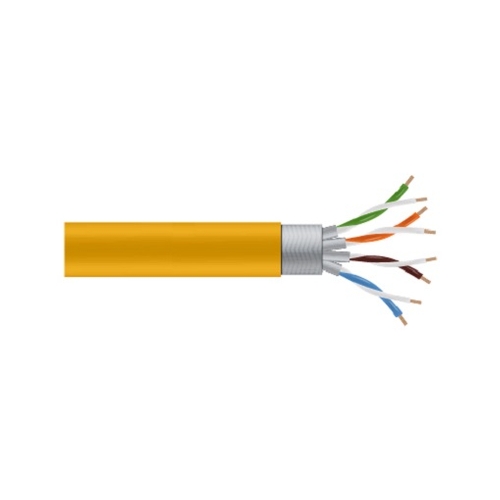

Black Box GigaTrue CAT6A 650-MHz premium bulk cable is constructed to exceed industry-standard requirements, providing the uncompromising performance demanded in today's 10G networking applications. Double-shielded to provide superior protection against EMI/RFI interference, it features four individually shielded twisted pairs with foam insulation and foil tape and an overall tinned copper braid. Designed to ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA standards, and tested to ensure premium CAT6A performance, our cabling guarantees transmission of your voice, data, audio/video, and/or PoE signals and is backed up by a Lifetime Warranty.
This CM-Rated General-purpose communications cable is in-wall rated for use in locations other than risers or plenums and is UL tested and verified to ensure premium performance to the CM flame rating for the protection of your environment in the event of a fire. It is constructed using stranded wiring, and is ideal for use in patch cabling and short horizontal runs, and comes in reel-on-spool packaging for seamless and easy cable pulls. Also, the cable length is marked on the jacketing in increments, making it easy to tell how much you have left.
Jacket Rating— CM
Shielding Shielded— (S/FTP)
Jacket Material— PVC
Category Type— CAT6A
Conductor Type— Stranded
Speed (Mhz)— 650-MHz
Gauge— 26
PS-NEXT— Minimum: 31.8 dB at 500 MHz
Return Loss— 13.0 dB @ 500 MHz
Standards— ANSI/TIA-568.2-D, UL444, ISO/IEC 11801 Class EA, 2011/65/EU (RoHS), 2015/863 (EU)
Approvals— REACH, RoHS, CE, UL/cUL
Characteristic Impedance— 1 – 500 MHz 100 +/- 15 Ohms
Diameter— 5.70 +/- 0.30-mm., 0.2244 +/- 0.01181-in.
Jacket— CM PVC
NEXT—Minimum: 33.8 dB at 500 MHz
ANSI/TIA Category— CAT6A
Conductor Gauge— 26 AWG
Cable Type—Stranded Bare Copper
Shielding— S/FTP
Frequency— Up to 650 MHz
Conductor Resistance— 14 Ohms / 100 m / 20° C Max.
Mutual Capacitance —5.6 nF / 100 M Max.
Dielectric Strength—AC 1.5 KV / 2 Seconds
Cable Length— 304.8-m

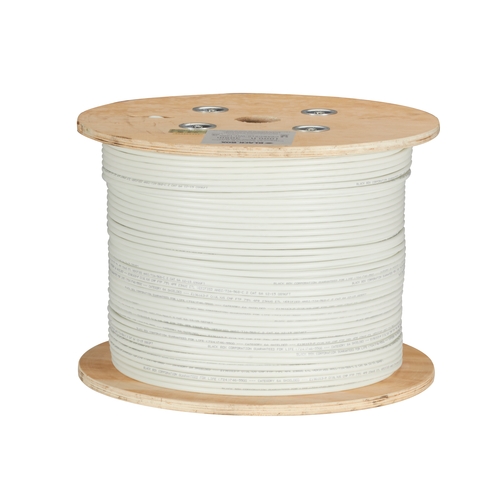

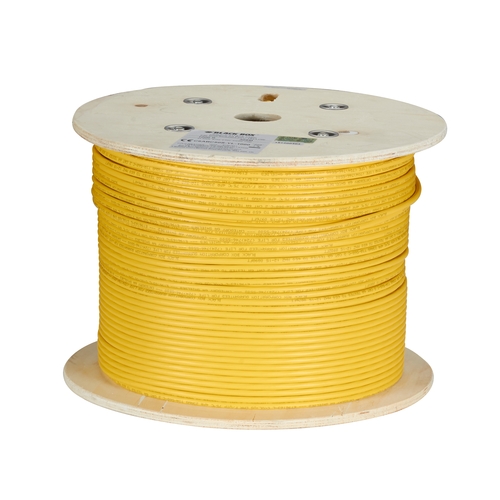

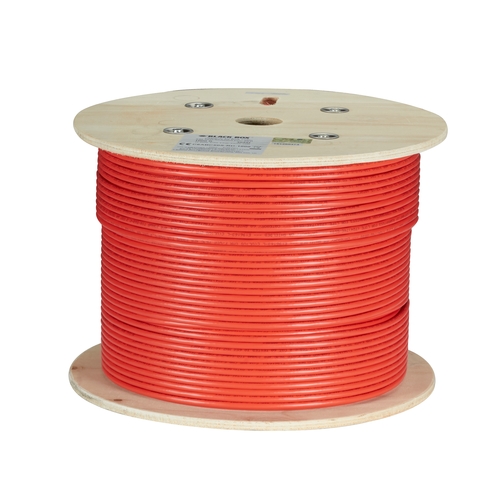

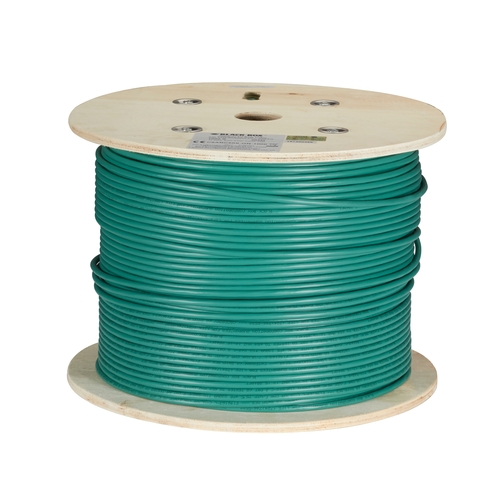

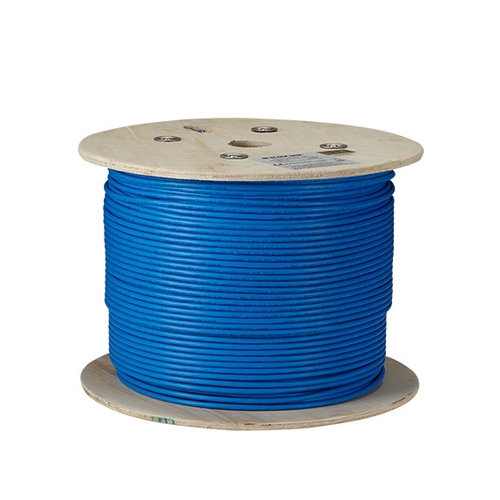

Packaging— Spool
TAA compliant — YES
