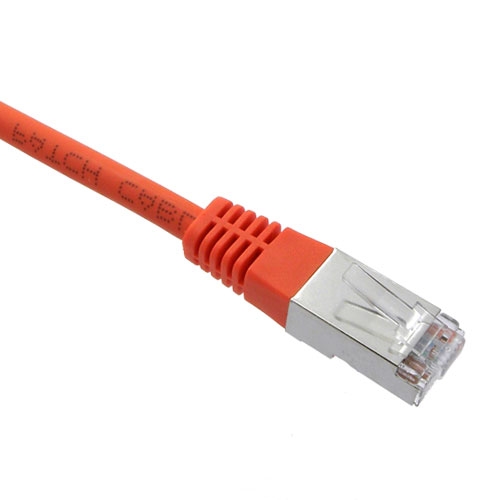

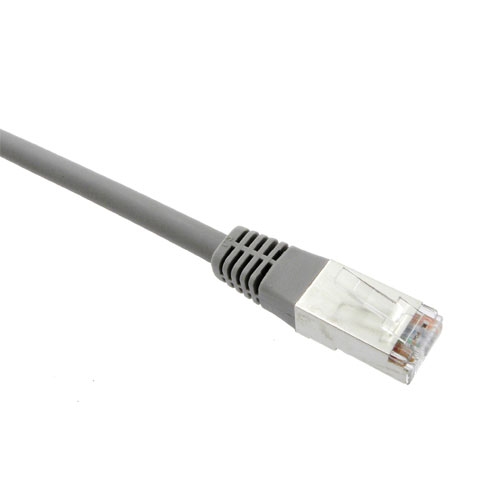

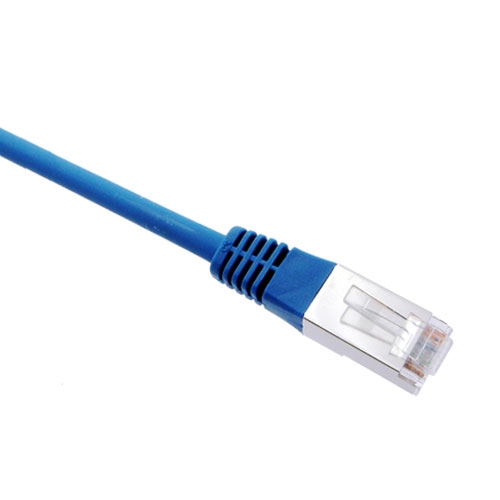

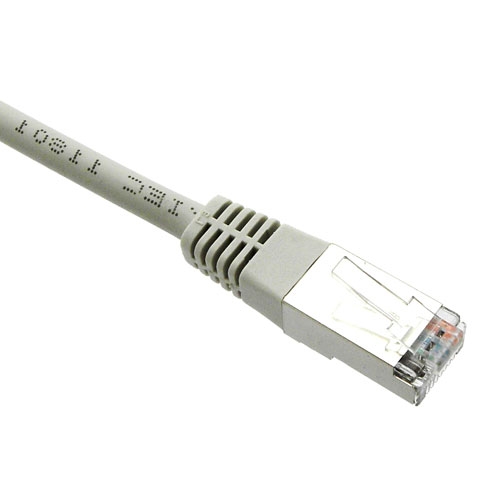

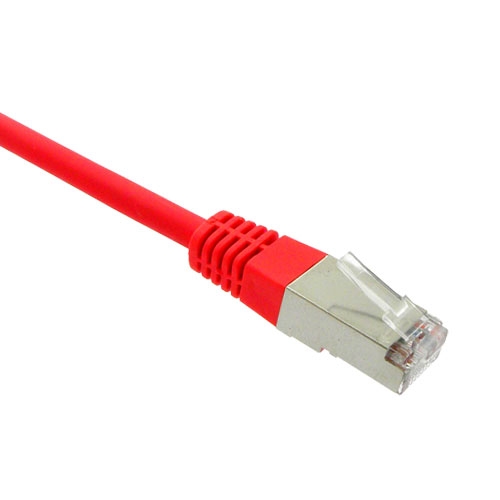

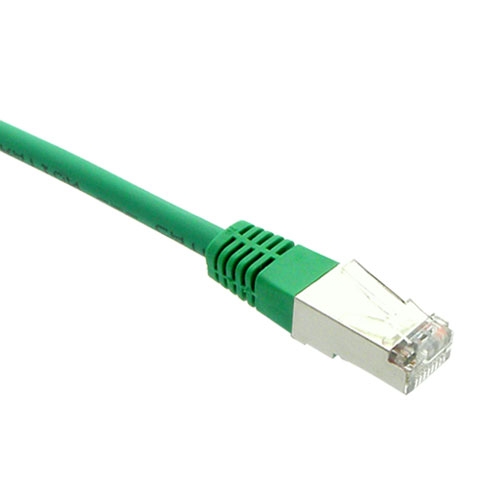

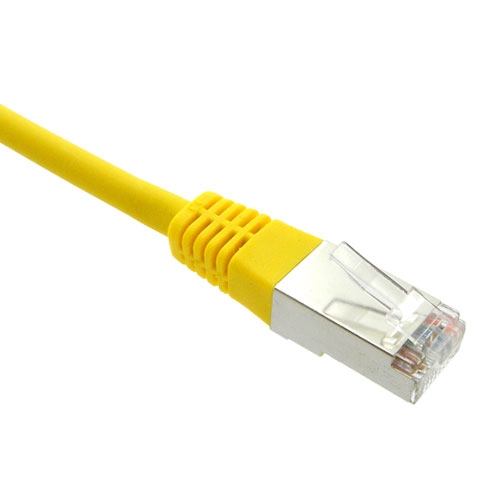

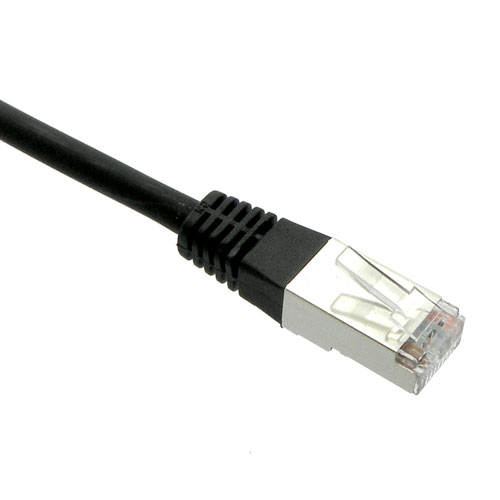

Black Box GigaBase Premium CAT5e patch cables are constructed to exceed ANSI/TIA industry standards, ensuring optimal performance in bandwidth-intensive Fast Ethernet applications and guaranteeing the transmission of your voice, data, audio/video and/or PoE signals.
Tested to 350-MHz and 1-Gbps performance, these cables exceed the 100-MHz CAT5e spec, greatly reducing impedance, structural return loss and near-end crosstalk (NEXT).
A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity, and LSZH rated jacketing that limits emission of smoke and corrosive gases in the event of a fire.
These cables have connectors designed for the insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform.

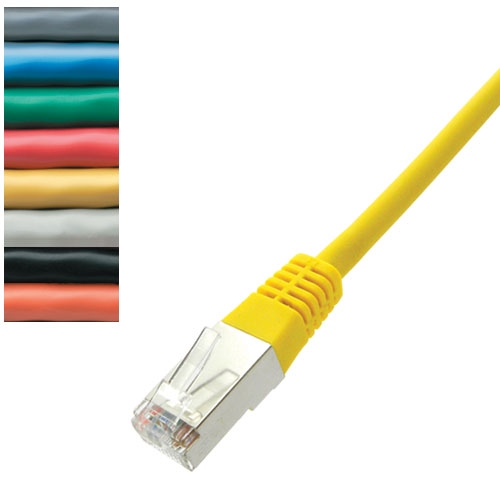

Available in a variety of lengths and colors, Black Box’s GigaBase line of cabling gives you the flexibility to build your install however you want.
Approvals RoHS, CE Standards TIA/EIA-568-C.2 Category 5e Connector 1 RJ-45 Male Connector 2 RJ-45 Male Connector Plating 50u Cable Jacket Type LSZH Cable Type Stranded Conductor Gauge 26 AWG Shielded F/UTP Snagless Connector No Frequency Up to 350 MHz Attenuation (Maximum)
22.5dB at 100MHz,
45.8dB @ 350MHz Impedance 100+/-15 ohms NEXT (Minimum)
35.3dB at 100MHz,
27.1dB at 350MHz PS-NEXT (Minimum)
32.3dB at 100MHz,
24.1dB at 350MHz Return Loss (Minimum)
19dB at 100MHz,
4.56dB at 350MHz
