Extend your network
Meet your massive networking needs. This media converter lets you extend your copper-based network via fiber to a maximum distance of 80 km through the use of an SFP. Also, it's quick and easy to install.
Support multiple standards
It meets the standard you need it to. It's fully compliant with IEEE802.3, IEEE802.3U, 10/100/1000BASE-TX, and 1000BASE-FX standards.
Status updates

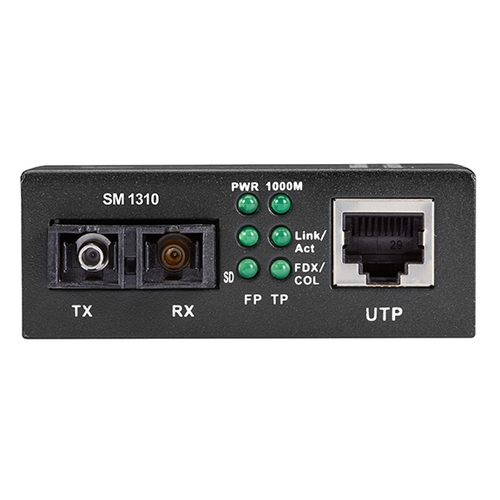

Know how your media converter is performing. Operation status can be locally monitored through a set of diagnostic LEDs located on the front panel.
Labels – CE, RoHS, FCC classe B
Raccords -
LGC210A : (1) Prise RJ-45, (1) fente SFP
LGC211A : (1) Prise RJ45, (1) prise SC duplex multimode
LGC211A : (1) Prise RJ45, (1) prise SC duplex monomode
Taille du cadre — jusqu'à 9216 bytes
Type de fibre optique—
LGC211A : Multimode : 50/125, 62,5/125 ou 100/140 um,
LGC212A-R2 : Monomode : 8,3/125, 8,7/125, 9/125 ou 10/125 um
LGC210A : selon l'émetteur/récepteur SFP
Normes — IEEE 802.3, IEEE 802.3U, 10/100BASE-TX, 100BASE-FX, IEEE 802.3x flow control for full-duplex mode, 802.3ab
1000BASE-T, 802.3z 1000BASE-X
Alimentation —adaptateur secteur externe, entrée 100-240VAC, sortie 5VDC 1A 5W avec clips de prise secteur pour US, EU, UK, AUS.
Format — 2,54x9,4x6,9 cm
Poids — 0,32 kg
Température de fonctionnement — entre 0 et 50° C

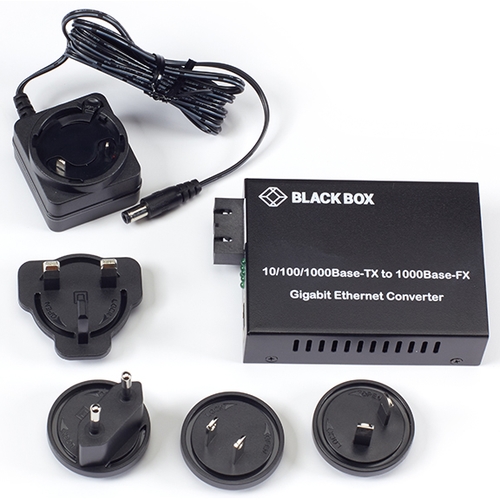

(1) Convertisseur multimédia
(1) Alimentation électrique, 5 VCC, universelle
|
|
