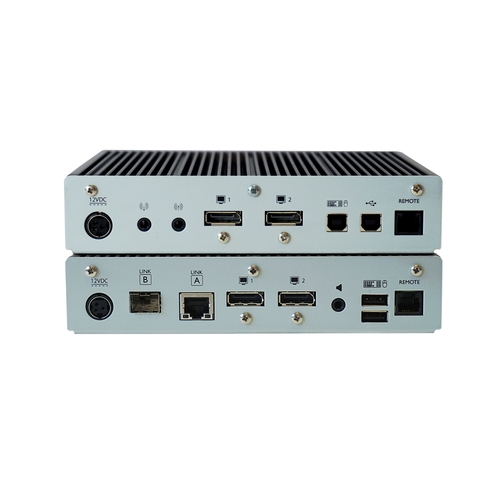

True Plug and play High-Performance point-to-point KVM extension. Using DisplayPort 1.2 (Multi-Stream Transport) Technology, KVXHP supports up to four external displays transmitted over a single cable. HD video, USB HID, and audio are all transmitted over a single CATx or Fiber cable. Whether your requirements are CATx or fiber, KVXHP is equipped to handle both interfaces providing a single solution for all use cases.
KVXHP supports four external MST enabled DisplayPort monitors with resolutions up to 1920x1200 at 60Hz using 8 bits per color and 4:4:4 chroma sampling, provides high-quality audio, EDID management, and Emulated USB HID.
19" Rackmount Option
The optional rackmount tray (KVXHP-RMK) holds up to two KVXHP extender units for quick mounting into any 19" rack and leaves enough space to hold the power supplies and cable management. To concentrate multiple KVM extensions in your rack, use our Central Power Hub solution (ACR1000-CPH8R-R2/ACR1000-CPH16R-R2) for a clutter-free, space-saving installation in 1RU. The hub powers up to eight or sixteen 12VDC devices replacing multiple single power supplies.
Single-head models for one monitor connection or dual-head models with support for two DisplayPort monitors are also available.
NOTE: For Fiber connectivity, please order the SFPs separately. The usage of other SFPs is not recommended.
NOTE: MST-enabled monitors or MST hub required.
NOTE: If the application requires 2 or more monitors in MST mode (including using an MST hub), the monitors must be HD and not 4K or the application will not function properly.
CE Compliant
Distance CAT5e cable: Up to 164 ft. (50 m);
CAT6 cable: Up to 328 ft. (100 m);
MM Fiber cable: Up to 984 ft. (300 m);
SM Fiber cable: Up to 2.48 mi. (4 km)
Indicators (4) Status LEDs (tri-color)
MTBF RX: 516,000 Hours; TX: 533,000 Hours
Operating Humidity 0 to 80%, noncondensing
Operating System OS independent
Operating Temperature 32 to 104° F (0 to 40° C)
Power[b] External 12-VDC, 1.5-Amps
[b]Power Consumption 18 Watts
Power Input 100-240 VAC, 50/60 Hz
Power Output 12 -VDC, 1.5 Amps
Resolution 1920 x 1200 up to 4 HD Monitors. 4K Monitors not fully supported.
Resolutions Supported 4096 x 2160 at 60 Hz
RoHS Compliant
Storage Temperature +14 to +122° F (-10 to +50° C)
Weight
RX: 2.96 lbs (1.34 kg);
TX: 3 lbs (1.36 kg)
Connectors
TX Input Connectors: (1) MST DisplayPort
RX Local Out Connectors: (4) DisplayPort using MST Hub (MST Hub not included)
Dimensions - Receiver 1.54" H x 7.32" W x 5.83" D (3.9 x 18.6 x 14.8 cm)
Dimensions - Transmitter 1.54" H x 7.32" W x 5.83" D (3.9 x 18.6 x 14.8 cm)
Weight - Receiver 2.73 lb. (1.24 kg)
Weight - Transmitter 2.84 lb. (1.29 kg)
TAA compliant — YES
(1) Transmitter
(1) Receiver
(2) 12V, 1.5A Power Supply
(1) DisplayPort Cables M/M, 1.8m (6 ft.)
(1) USB Type A to B Cables, M/M, 1.8m (6 ft.)
(1) 3.5mm Audio Cable, MM, 3m (10 ft.)
Power Cord(s)
|
